Single Wall Corrugator Machine
Product Overview
High-performance corrugator machines designed for flexible, durable pipe production across electrical, automotive, medical and industrial applications.
Machines Range
Single wall corrugator machine models viz:
SWC 5-15: Ø5 mm to Ø15 mmSWC 10-50: Ø10 mm to Ø50 mmSWC 12-65 (Polyamide Nylon-6): Ø12 mm to Ø65 mmSWS 50-160 (Sheathing): Ø50 mm to Ø160 mmHS 16-40 (High Speed): 16 mm to 40 mm
- Pipe Range
- OD Ø 5 mm - Ø 160 mm
- Max Speed
- 35 m/min

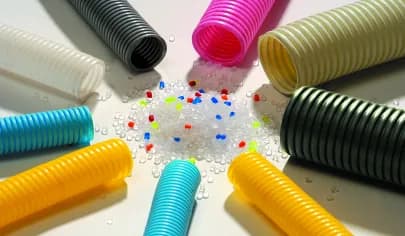

- Polymers
- PA • PP • PE • PVC
Volcano Pipe Corrugators Specifications
Model SWC 5-15
| Parameter | Available Range |
|---|---|
| Size of Pipe | From Ø5mm to Ø15mm Diameter |
| Drive for Corrugator | 1.5HP, 3 Phase 415± Voltage Gear Motor (Standard Make). |
| Variable Speed Drive | Speed variable depend on size & output of extruder with emergency stop arrangement. |
| Lubrication System | Centralized lubrication system used to give specific pulse at specific place to easily slide with low friction. |
| Cooling System | Inbuilt cooling channel with brass fitting of inlet & outlet connection for chilled water. |
| Air Blower | Used as additional air cooling for better finish & output. |

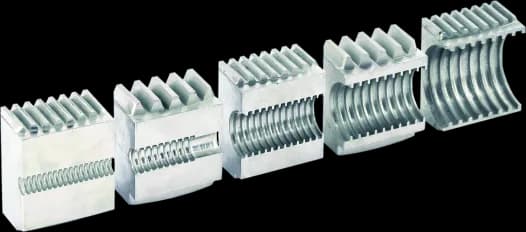

| Mould Blocks | Size: L30mm x W15mm x H30mm |
| Chain Length | 2000 mm |
| Pipe Diameter | 5mm, 7mm, 10mm, 14mm Diameter |
Model SWC 10-50
| Parameter | Available Range |
|---|---|
| Size of Pipe | From Ø10mm to Ø50mm Diameter |
| Drive for Corrugator | 3HP, 3 Phase 415± Voltage Gear Motor |
| Variable Speed Drive | Speed variable depend on size & output of extruder with emergency stop arrangement. |
| Lubrication System | Centralized lubrication system used to give specific pulse at specific place to easily slide with low friction. |
| Cooling System | Inbuilt cooling channel with brass fitting of inlet & outlet connection for chilled water. |
| Air Blower | Used as additional air cooling for better finish & output. |
| Mould Blocks | Size: L50mm x W30mm x H60mm |
| Chain Length | 3000 mm or 4500mm or 6000mm |
| Pipe Diameter | 10mm, 14mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm Diameter |
Model SWC 12-65 (Polyamide Nylon-6)
| Parameter | Available Range |
|---|---|
| Size of Pipe | From Ø12mm to Ø65mm Diameter |
| Drive for Corrugator | 5HP, 3 Phase 415± Voltage Gear Motor |
| Variable Speed Drive | Speed variable depend on size & output of extruder with emergency stop arrangement. |
| Lubrication System | Centralized lubrication system used to give specific pulse at specific place to easily slide with low friction. |
| Cooling System | Inbuilt cooling channel with brass fitting of inlet & outlet connection for chilled water. |
| Air Blower | Used as additional air cooling for better finish & output. |
| Mould Blocks | Size: L56.5mm x W42mm x H85mm |
| Chain Length | 3051 mm or 6102 mm |
| Pipe Diameter | NW-12, 17, 23, 29, 36 & 48 size |
Model SWS 50-160 (Sheathing)
| Parameter | Available Range |
|---|---|
| Size of Pipe | From Ø50mm to Ø160mm Diameter |
| Drive for Corrugator | 7.5 HP, 3 Phase 415± Voltage Gear Motor |
| Variable Speed Drive | Speed variable depend on size & output of extruder with emergency stop arrangement. |
| Lubrication System | Centralized lubrication system used to give specific pulse at specific place to easily slide with low friction. |
| Cooling System | Inbuilt cooling channel with brass fitting of inlet & outlet connection for chilled water. |
| Air Blower | Used as additional air cooling for better finish & output. |
| Mould Blocks | Size: L130mm x W115mm x H230mm |
| Chain Length | 3000 mm or 4500mm |
| Pipe Diameter | 63/51mm, 90/76mm, 98/84mm, 120/103mm, 127/107mm, 145/123.5mm, 160/134.5mm, 175/146mm |
High Speed Model HS 16-40
| Parameter | Available Range |
|---|---|
| Size of Pipe | From 16mm to 40mm Diameter |
| Drive for Corrugator | 5HP, 3 Phase 415± Voltage Gear Motor |
| Variable Speed Drive | Speed variable depend on size & output of extruder with emergency stop arrangement. |
| Lubrication System | Centralized lubrication system used to give specific pulse at specific place to easily slide with low friction. |
| Cooling System | Inbuilt cooling channel with brass fitting of inlet & outlet connection for chilled water. |
| Air Blower | Used as additional air cooling for better finish & output. |
| Mould Blocks | Size: L50mm x W30mm x H60mm |
| Chain Length | 6000 mm |
| Pipe Diameter | 16mm, 20mm, 25mm, 32mm, 40mm |
We can also supply modular corrugator having chain length of 2000 mm, 2500 mm & 3000 mm according to piece length of pipe to reduce the waste.
Other Machinery

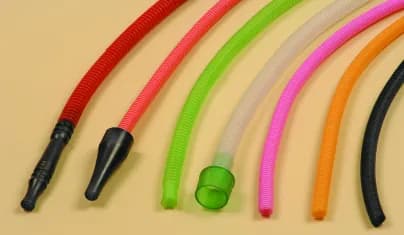

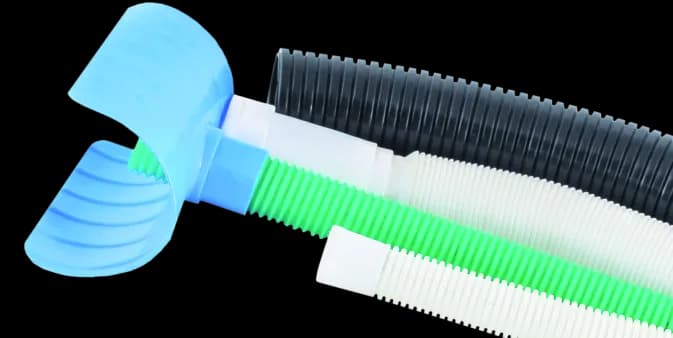

Product Applications

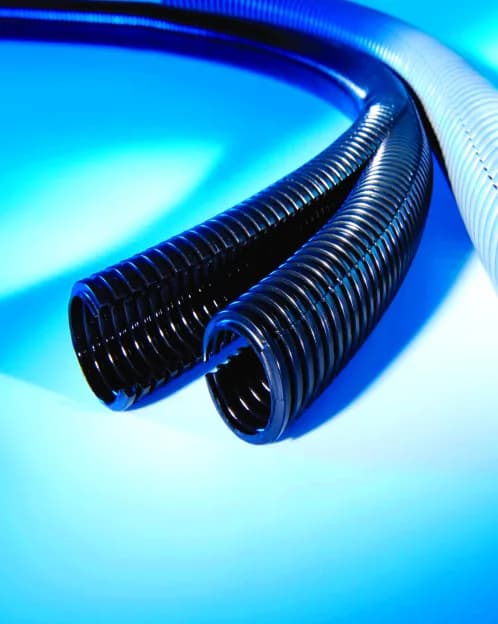

Electrical Insulations & Cable Protection
Building, Machinery, Automotive.
Equipment in Use
Washing Machine, Sanitary, Vacuum Cleaners, Dish Washers, Medical Applications, Television, Telephone, Computer Line, Power Controls, Conveyers.
Also Used As
Decorative Bicycle, Drain Pipe, Structural, Civil Engineering, Air Conditioner Duct, Architectural use, Media in Bio Gas Plant, Drip Irrigation, Plantation, Field House.
FAQs - Frequently Asked Questions
Which nylon corrugated pipe machine model do you offer?
Our SWC 12-65 (Polyamide / Nylon-6) model makes 12–65 mm pipe in the NW 12, 17, 23, 29, 36 and 48 harness sizes. It has a 5 HP corrugator drive and a 3051 or 6102 mm chain. Polyamide absorbs moisture, so dry the granules before extrusion.
Is this line suitable as a flexible conduit pipe manufacturing machine for building wiring?
Yes. Corrugated conduit is used for concealed wiring in walls and slabs. Many markets expect flame-retardant (FR) grades for building use, so choose an FR compound that meets your local standard. The SWC 10-50 covers the common 16, 20, 25 and 32 mm conduit sizes.
Do you have a small corrugated pipe machine for very thin pipes?
Yes, the SWC 5-15. It makes 5, 7, 10 and 14 mm pipe with a 1.5 HP drive and a 2000 mm chain. It is used for telephone, data and fine-wire sleeves. Its low power draw and compact size suit a first line or a dedicated small-size line.
Do you offer a high-speed corrugated pipe production line?
Yes, the HS-16-40. It makes 16, 20, 25, 32 and 40 mm pipe with a 5 HP drive and a 6000 mm chain. It is built for high-volume production of the best-selling conduit sizes.
Can an SWC pipe plant make sheathing ducts for bridges?
Yes, with our SWS 50-160 sheathing model. It makes 50–160 mm pipe (63/51 to 175/146 OD/ID) with a 7.5 HP drive. These ducts hold the prestressing cables in post-tensioned concrete bridges for rail and road projects.
Can single wall corrugators produce fixed cut lengths instead of coils?
Yes. We also offer modular corrugators with 2000, 2500 or 3000 mm chain lengths. The chain is matched to your pipe piece length, which reduces waste.
Can an HDPE SWC pipe machine make stiffer single wall pipe?
Yes. HDPE gives a firmer, more crush-resistant pipe than LDPE. That suits conduit cast into concrete, outdoor runs and larger drainage pipe. The same line runs both materials with changed temperature settings.
